Phoenix Contact Type II / Class C Surge Protection Devices Supplier
United Machinery is one of the leading suppliers of Phoenix Contact Type II / Class C Surge Protection Devices (SPDs) in West Bengal, Bihar, Odisha, Chhattisgarh, Jharkhand, Maharashtra, Rajasthan, Haryana, Madhya Pradesh, Gujarat, Assam, Tripura, Andhra Pradesh, Meghalaya, Karnataka, Manipur, Tamil Nadu, Hyderabad, and internationally across Saudi Arabia & the UAE. We deliver genuine Phoenix Contact SPD solutions that provide reliable protection against medium-level transient overvoltages in industrial and commercial electrical systems.
Product Introduction of Phoenix Contact Type II / Class C SPDs
Type II / Class C Surge Protection Devices from Phoenix Contact are designed to protect electrical installations, control systems, and sensitive equipment from switching surges, induced lightning surges, and internal overvoltage events. They act as the second stage of surge protection after Type I devices, ensuring a stable and secure power environment. These devices are ideal for distribution boards, subpanels, and equipment-level protection across industrial, residential, and commercial sectors.
Where We Can Use Type II / Class C SPDs
Phoenix Contact Type II / Class C SPDs are widely used in:
- Industrial Automation Panels
- Factory Machinery, Motors & Drives
- PLC Panels & Control Cabinets
- Commercial Buildings & Office Infrastructure
- Power Distribution Boards
- Telecommunication Equipment
- Renewable Energy Systems (Solar, Wind)
- Data Centers & IT Rooms
- Shopping Malls, Hospitals, Schools
- Remote Stations & Communication Hubs
Core Specifications
Typical specifications of Type II / Class C Phoenix Contact SPDs:
- Nominal Voltage Options:60V, 120V, 230V, 320V, 350V, 12V (for signal circuits)
- High Discharge Capacity
- Thermal Disconnect for Safe Operation
- Visual Status Indicator
- Plug-in Replaceable Module
- Low Residual Voltage Level
- DIN Rail Mounting Design
- Certified According to IEC/EN 61643 Standards
Performance Advantages
Phoenix Contact Type II SPDs deliver unmatched protection with features such as:
- High surge-handling capabilityfor medium-level overvoltage events
- Quick response timeto prevent equipment damage
- Compact & modular designfor easy installation
- Maintenance-friendly replaceable modules
- High reliability even in harsh industrial environments
- Ensures stable operation of sensitive electronics
- Reduces equipment downtime and maintenance cost
Industrial Applications
These devices are suitable for a wide range of industries:
- Electrical & Power Distribution
- Manufacturing & Industrial Automation
- Oil & Gas Industry
- Cement, Steel & Mining Sectors
- Building Infrastructure & Real Estate
- Process Control & Instrumentation
- Solar Power Plants (DC & AC side protection)
- Telecom & Broadcasting
- Transportation Industry – Railways, Airports
- Water Treatment Plants
Technical Chart of Type II / Class C Surge Protection Devices
Model | Order No. | Description |
VAL-MS 350 VF ST | 2856595 | Type II SPD, 350V, High-performance protection |
VAL-MS 320 ST | 2838843 | Type II SPD, 320V, Standard version |
VAL-MS 230 ST | 2798844 | Type II SPD, 230V, General electrical protection |
VAL-MS 120 ST | 2807586 | Type II SPD, 120V, Medium-voltage equipment protection |
VAL-MS 60 ST | 2807573 | Type II SPD, 60V, Low-voltage DC/AC circuits |
F-MS 12 ST | 2817990 | Type II SPD, 12V, low-voltage electronic protection |
VAL-MS 320/3+1 | 5792094 | 3+1 configuration, ideal for TN-S/TN-C-S systems |
VAL-MS 320/3+1 | 2859178 | 3+1 configuration, enhanced protection version |
VAL-MS 320/1+1 | 5792092 | 1+1 configuration for single-phase systems |
VAL-MS BE/FM | 2817738 | Base element with remote signaling |
VAL MS 120/FM/3RL | 1534487 | 120V version with remote signaling, 3RL type |
VAL MS 60/FM/3RL | 1534483 | 60V version with remote signaling, 3RL type |
VAL MS 320/FM/3RL | 1534489 | 320V version with FM & 3RL design |
Variant of the product

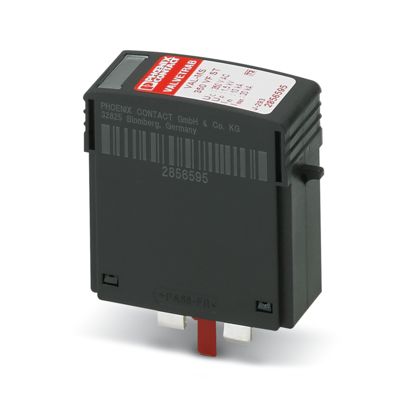

VAL-MS 350 VF ST – 2856595
A high-performance Type II Surge Protection Device designed to protect 350 V systems from transient overvoltage.
Features:
- Suitable for industrial AC power networks
- Visual fault display (VF) for easy status monitoring
- Plug-in, replaceable module design
- High discharge capability
Applications: Control panels, switchboards, distribution boxes, machine control systems.

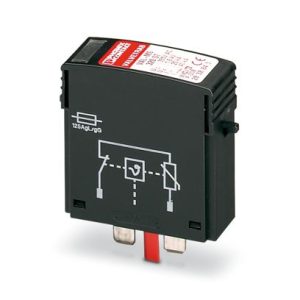

VAL-MS 320 ST – 2838843
Designed for 320 V AC systems, this SPD offers premium protection against medium-energy surges.
Features:
- Compact modular design
- Thermal disconnection technology
- Low leakage current
- DIN-rail mountable
Applications: Automation systems, facility management, industrial machines.
VAL-MS 230 ST – 2798844
A widely used SPD suitable for 230 V power systems.
Features:
- High surge current capability
- Integrated fault-signal contact
- Safe Energy Control (SEC) technology
Applications: Power distribution panels, UPS input protection, building power systems.

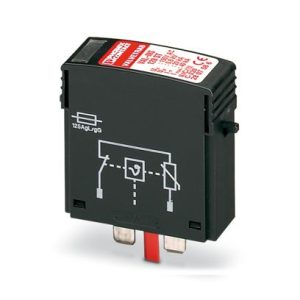

VAL-MS 120 ST – 2807586
Ideal for 120 V AC low-voltage applications requiring stable protection.
Features:
- Compact & modular design
- Replaceable protection module
- High service life
Applications: Machinery panels, instrumentation panels, HVAC systems.

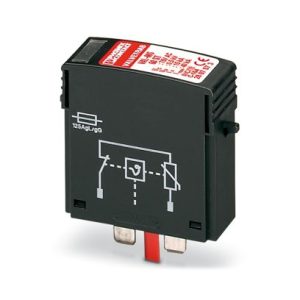

VAL-MS 60 ST – 2807573
Designed for sensitive 60 V supply lines and compact electronic systems.
Features:
- Superior protection for low-voltage circuits
- Quick response time
- Long-life varistor technology
Applications: DC circuits, low-voltage control cabinets, signal equipment.

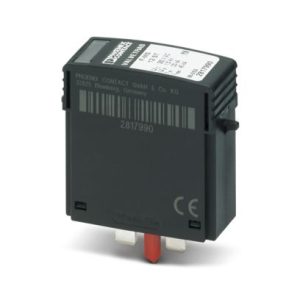

F-MS 12 ST – 2817990
This device is specially designed for signal line surge protection.
Features:
- Fast clamping response
- Protects measurement & control signals
- Compact DIN-rail modular design
Applications: Sensors, automation lines, PLC I/O, signal loops.
VAL-MS 320/3+1 – 5792094
A 3-phase + neutral (3+1) SPD ideal for TN-S and TT systems.
Features:
- Protects all three phases + N line
- High discharge capacity
- Perfect for main distribution boards
Applications: Industrial plants, commercial buildings, utility networks

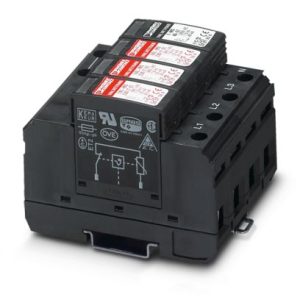

VAL-MS 320/3+1 – 2859178
Another variant of the 320/3+1 model with similar functionality but suited for different coordination or installation standards.
Features & Applications:
Same as above—used in 3-phase power networks requiring coordinated protection.
VAL-MS 320/1+1 – 5792092
A 1-phase + neutral SPD for single-phase systems.
Features:
- Ideal for 230/240 V single-phase AC networks
- Compact footprint
- High surge endurance
Applications: Single-phase machines, residential DBs, office power panels.
VAL-MS BE/FM – 2817738
A Base Element (BE) with Fault Monitoring (FM) functionality.
Features:
- Remote signal contact for fault indication
- Base holder for plug-in protection modules
- Ensures system safety through monitoring
Applications: Automation cabinets, SCADA systems, critical power networks.
VAL-MS 120/FM/3RL – 1534487
A surge protection module for 120 V systems with 3RL (3-level protection) and remote fault monitoring.
Features:
- Multistage protection design
- Remote fault signalling
- Ideal for sensitive electronics
Applications: Instrumentation, control systems, smart panels.
VAL-MS 60/FM/3RL – 1534483
A 60 V SPD with 3RL multilevel protection and monitoring.
Features:
- Suitable for low-voltage DC circuits
- High-speed protection
- Longer service life in critical circuits
Applications: Renewable systems, telecommunication power lines, control circuits.
VAL-MS 320/FM/3RL – 1534489
A highly reliable 320 V SPD with FM & 3RL protection stages.
Features:
- Superior surge absorption
- Remote monitoring for safety
- Plug-in replacement design
Applications: Main distribution boards, high-sensitivity industrial machinery, PLC cabinets.
We Supply Across India and International
- West Bengal
- Bihar
- Odisha
- Chhattisgarh
- Jharkhand:Ranchi
- Maharashtra:Mumbai, Pune, Nagpur, Aurangabad
- Rajasthan:Jaipur
- Haryana:Faridabad
- Madhya Pradesh:Bhopal, Indore
- Gujarat:Ahmedabad, Surat, Vadodara
- Assam
- Tripura:Agartala
- Andhra Pradesh:Visakhapatnam
- Meghalaya
- Karnataka:Bengaluru
- Manipur:Imphal
- Tamil Nadu:Chennai, Coimbatore
- Hyderabad
- International Supply:
- Saudi Arabia:Al Jubail, Jeddah, Riyadh, Al Khobar
- UAE:Abu Dhabi, Dubai, Ruwais, Umm Al Quwain
Affordable Type II / Class C Surge Protection Devices in Your Region
United Machinery ensures affordable, high-quality Phoenix Contact SPDs across: West Bengal, Bihar, Odisha, Chhattisgarh, Jharkhand, Maharashtra, Rajasthan, Haryana, Madhya Pradesh, Gujarat, Assam, Tripura, Andhra Pradesh, Meghalaya, Karnataka, Manipur, Tamil Nadu, Hyderabad, Saudi Arabia & UAE. We provide competitive pricing, genuine certifications, and fast delivery for all Phoenix Contact Surge Protection Devices.
How We Ensure Customer Satisfaction
United Machinery maintains long-term trust by offering:
- 100% Genuine Phoenix Contact products
- Technical Guidance & Selection Support
- Large inventory for quick supply
- Multiple voltage & configuration options
- After-sales support & replacement assistance
- PAN-India & International delivery capability
Contact Us – United Machinery Corporation
Looking for a trusted PHOENIX CONTACT Type II/ Class C Surge Protection Devices Supplier?
Phone Number – +91 90732 37992
Email Id – onlineumc9@gmail.com
Get in touch with United Machinery Corporation for genuine products, competitive pricing, and fast dispatch across India, Saudi Arabia, and UAE.
