When a control panel has to interface a PLC output with a motor, contactor, solenoid, alarm, lamp or other field device, the relay selected for that circuit matters. The relay has to match the control signal, load characteristics, switching requirements, available panel space and maintenance strategy. United Machinery Corporation supplies Phoenix Contact Relays for industrial automation, electrical control panels, machine building, instrumentation, process systems and other professional applications. We work with OEMs, panel builders, automation integrators, electrical contractors, maintenance departments and industrial procurement teams looking for Phoenix Contact relay products and compatible accessories. Our supply coverage extends across major industrial markets in India, UAE and Saudi Arabia, supporting both project-based requirements and ongoing industrial procurement.

Phoenix Contact Relays for Industrial Control Applications

A Relay provides an electrically controlled switching interface between a control circuit and another electrical circuit. In industrial automation, this arrangement can be useful when a PLC or control system needs to operate a field load while maintaining appropriate separation between the control and switched circuits. Phoenix Contact offers relay solutions in different configurations and product families. Depending on the selected model, they can be used for:

• PLC output interfacing
• Control signal switching
• Motor and actuator circuits
• Solenoid control
• Alarm and indication circuits
• Industrial machine control
• Building automation
• Interface applications
• Signal isolation
• Switching of suitable AC or DC loads

The correct relay must always be selected according to the electrical characteristics of the actual application.

Why Use an Interface Relay in a Control Panel?

In a typical automation system, the output of a PLC may not be intended to directly switch every type of field load. An interface relay can provide a practical switching stage between the controller and the external circuit.

This can help with:

• Electrical Interface

The relay can act as an interface between a control output and a connected field circuit when the selected relay is suitable for the application.

• Circuit Separation

Appropriately designed relay modules can provide separation between control-side and load-side circuits.

• Easier Troubleshooting

Clearly arranged relay modules can make control-panel wiring easier to identify during maintenance.

• Replacement Convenience

Certain Phoenix Contact relay systems use replaceable relay elements or modular designs, depending on the product family.

• Panel Organization

Slim and modular relay products can help panel builders create structured control wiring.

Phoenix Contact Relay Categories

The Phoenix Contact range includes several relay concepts. Selecting the category first can make product identification easier.

PLC Interface Relays

PLC interface relays are commonly used between PLC outputs and field-level devices.

They can be suitable for:

• PLC output interfacing
• Solenoid switching
• Contactor control
• Alarm circuits
• Actuator interfaces
• Industrial control panels

Electromechanical Relays

Electromechanical relay modules use a mechanical contact arrangement to switch an external circuit.

They can be considered where the application requires a conventional relay switching function and the selected model’s contact ratings are suitable.

Solid-State Relay and Optocoupler Solutions

Solid-state switching and optocoupler products use semiconductor-based technology rather than conventional mechanical contacts.

They may be useful in applications where:

• Frequent switching occurs
• Mechanical contact wear is a concern
• Electrical isolation is required
• Fast electronic switching is preferred

The exact switching characteristics depend on the product.

Power Relay Solutions

Power relay products are intended for applications requiring higher load-switching capability than typical signal/interface applications. The actual current and voltage ratings must be checked for the specific part number and load type.

Multi-Channel Relay Modules

Multi-channel relay arrangements combine several relay circuits into a compact assembly.

They can be useful for:

• PLC output expansion
• Machine control
• Multiple actuator circuits
• Automation panels
• Compact control cabinets

Phoenix Contact Relay Selection Guide

Selecting a relay should start with the circuit, not simply the product name.

Step 1 – Identify the Control Signal

Determine the signal available from the controller.

Examples may include:

• 24 V DC
• AC control voltage
• Other model-specific control voltages

The relay input must be compatible with the control signal.

Step 2 – Identify the Load

Determine what the relay will actually switch.

For example:

• Contactor coil
• Solenoid valve
• Motor control circuit
• Heater control
• Indicator
• Alarm
• Auxiliary circuit

A motor or inductive load should not be evaluated in the same way as a simple resistive load.

Step 3 – Check Contact Configuration

The required contact arrangement depends on the circuit design.

Common configurations may include:

• Normally open
• Normally closed
• Changeover
• Single-contact arrangements
• Multiple-contact arrangements

Step 4 – Check the Load Rating

The relay contact rating must be suitable for the actual voltage, current and load category.

Do not select a relay only because its catalogue headline shows a particular current rating.

Step 5 – Consider Switching Frequency

If a relay will operate frequently, mechanical endurance and electrical switching life become important selection factors.

Step 6 – Check Installation Space

Panel builders should verify the relay’s width, mounting method, terminal arrangement and available cabinet space.

Step 7 – Check Accessories

Some installations may require compatible sockets, bases, marking accessories, jumpers or other components.

Technical Parameters to Verify Before Ordering

Phoenix Contact relay specifications vary by model. The following table identifies the information an industrial buyer should confirm.

The exact Phoenix Contact datasheet should be used for final engineering and procurement decisions.

Selected Phoenix Contact Relay Products

United Machinery Corporation can supply specific Phoenix Contact relay references according to availability and customer requirements.

Rather than describing every part number with generic specifications, buyers should use the exact reference when requesting a quotation.

Examples from the supplied product range include:

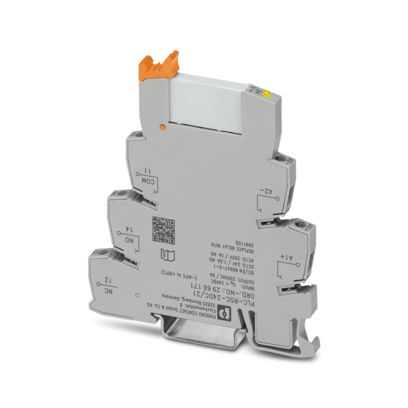

• PLC-RSC-24VDC/21 – 2966171

A PLC interface relay reference intended for control-panel applications. The exact input, output and switching characteristics should be verified from the current product documentation.

• PLC-RSC-24VDC/21-21 – 2967060

A Phoenix Contact PLC interface relay reference for applications requiring the corresponding control and contact configuration.

• PLC-RSC-230UC/21-21 – 2967099

A PLC interface relay reference associated with a 230 V AC/UC control arrangement. Confirm the complete electrical characteristics before selection.

• REL-MR-24DC/21 – 2961105

A relay module reference for suitable 24 V DC control applications.

• REL-MR-24DC/21-21 – 2961192

A Phoenix Contact relay reference used for applications requiring its specified 24 V DC input and contact configuration.

• REL-MR-BL-24DC/21HC – 2906285

A relay module reference from the REL-MR range. The specific switching capacity and application suitability should be checked against the product datasheet.

• RIF-RH-1-H – 2904468

A RIF relay-system reference intended for suitable industrial switching applications.

• ECOR1BSC3/2X21 – 2907518

An ECOR relay reference that can be evaluated for appropriate control and switching requirements.

• OPT-24DC/24DC/2 – 2966595

An optocoupler/interface product reference for applications requiring electronic signal isolation and interfacing.

• PLC-BSC-24DC/21 – 2966016

A PLC interface relay base reference used with compatible relay arrangements.

• UM-8RM/KSR/230AC/21-21 – 2317416

An 8-channel relay module reference for applications requiring multiple relay outputs. The exact relay configuration and electrical ratings should be verified for the supplied assembly.

• UM-8RM/G2R/230AC/21 – 2317403

A multi-channel relay assembly reference intended for applications requiring multiple switching channels.

• UM-8RM/058/24DC/21-21 – 1161336

An 8-channel relay module reference associated with 24 V DC control applications.

• UM-8RM/KSR/110AC/21-21/SO1 – 2900083:01

A multi-channel relay assembly reference for suitable 110 V AC control applications.

Relay Selection for PLC Panels

PLC panels often require a practical interface between low-level control outputs and external field circuits.

A relay interface may be considered when the panel design requires:

• Output isolation
• Additional switching contacts
• Interface between different circuit levels
• Field-device switching
• Easier replacement
• Structured wiring

For panel builders, it is important to check the complete signal path:

PLC output → interface relay → field circuit → connected load

Every component in that chain should be compatible with the intended electrical conditions.

Phoenix Contact Relays for Machine Builders

Machine manufacturers often need compact and serviceable control components.

Relays can be used in machine applications for:

• Valve control
• Contactor operation
• Motor auxiliary circuits
• Safety-related interfaces where the appropriate certified solution is specified
• Alarm outputs
• Status signals
• Actuator control
• Interlocking circuits

The relay should be selected according to the machine’s electrical design rather than simply based on physical compatibility.

Applications Across Industrial Sectors

• Manufacturing

Relays are used in control cabinets and machinery to interface control signals with field devices.

• Process Industries

Suitable relay modules can support instrumentation, actuator and auxiliary control circuits.

• Water and Wastewater

Control panels may use relay interfaces for pumps, valves, alarms and auxiliary systems.

• Building Automation

Relay modules can be incorporated into suitable HVAC, lighting and building-control applications.

• Energy and Utilities

Control and auxiliary circuits in power-related installations may require appropriate relay interfaces.

• OEM Machinery

Machine builders can incorporate compact relay systems into standardized electrical panels.

• Industrial Automation

PLC, HMI, I/O and field-device systems may require relay interfaces depending on the circuit design.

Phoenix Contact Relays for Panel Manufacturing

For a panel builder, selecting the relay is only one part of the procurement process. The product also needs to fit the panel’s wiring architecture.

Important considerations include:

• DIN-rail space
• Terminal accessibility
• Wire routing
• Relay identification
• Replacement procedure
• Contact arrangement
• Input voltage
• Output load
• Associated accessories
• Panel BOM standardization

United Machinery Corporation can support customers who provide a panel BOM, relay part number, electrical drawing or project requirement.

B2B Procurement Support from United Machinery Corporation

Industrial buyers often need exact components rather than generic alternatives.

Our B2B supply process can support:

• Part-Number Based Enquiries

Send the exact Phoenix Contact reference when available.

• BOM-Based Procurement

Panel manufacturers can share a component list for quotation and sourcing.

• Project Quantities

Bulk requirements can be discussed for machine-building and industrial projects.

• Replacement Requirements

Maintenance teams can provide an existing relay reference when looking for replacement supply.

• Technical Identification

If the original part number is unavailable, application details can help determine what information is required for product identification.
