Phoenix Contact Essential SPD Supplier
United Machinery is one of the leading suppliers of Phoenix Contact Essential Surge Protection Devices (SPD) Serving West Bengal, Bihar, Odisha, Chhattisgarh, Jharkhand, Maharashtra, Rajasthan, Haryana, Madhya Pradesh, Gujarat, Assam, Tripura, Andhra Pradesh, Meghalaya, Karnataka, Manipur, Tamil Nadu, Hyderabad, Saudi Arabia & the UAE, delivering reliable protection for electrical and electronic systems across industries. These SPDs are specially designed to safeguard equipment against transient overvoltages, lightning surges, switching surges, and grid disturbances.
Product Information of Phoenix Contact Essential SPD
Phoenix Contact Essential SPD series is engineered to provide robust protection for low-voltage power systems. These devices ensure long-term system reliability in residential, commercial, and industrial environments. The Essential Series combines Type 2 protection, compact design, and advanced thermal disconnection mechanisms—making it ideal for main distribution boards and sub-distribution panels. Whether you operate a manufacturing plant, commercial building, data centre, or utility infrastructure, these SPDs help minimize downtime and extend the lifespan of sensitive equipment.
Key Product Features
- Type 2 Surge Protection– Ideal for preventing damage from medium-level surges.
- Thermal and Mechanical Safety– Integrated temperature monitoring & safe disconnection.
- Compact Plug-in Design– Easy maintenance with replaceable modules.
- Visual Status Indicators– Quick inspection of protection status.
- High Surge Discharge Capacity– Designed for lightning-prone and unstable power regions.
- Optimized for TN, TT, and IT Networks– Suitable across various power distribution systems.
- Optional Remote Signalling (FM Models)– For automated monitoring and alerts.
Benefits of Using ESSENTIAL SPD
- Protects Expensive Equipment– Prevents failures in drives, controllers, PLCs, monitoring systems, and electrical panels.
- Reduces Downtime & Maintenance Costs– Avoid costly repairs and unplanned shutdowns.
- Improves Electrical Safety– Ensures stable operation of power systems.
- Compliant with International Standards– Built to IEC/EN 61643 requirements.
- Ideal for Harsh Indian Conditions– Suitable for lightning zones, industrial disturbances, and grid fluctuations.
- Long Service Life– Superior MOV technology extends operational durability.
Technical Chart (General Parameters)
Parameter | Specification |
SPD Type | Type 2 (Class II) |
Nominal Voltage (Un) | 230/400 V AC |
Max. Continuous Voltage (Uc) | 320 V AC |
Rated Discharge Current (In) | 20 kA |
Max. Discharge Current (Imax) | 40 kA |
Voltage Protection Level (Up) | < 1.8 kV |
Mounting | DIN Rail |
Signalling | Visual indicator / Remote signalling (FM models) |
Types of Phoenix Contact Essential Spd
VAL-MS-EE-T2-1+1-320-2BE {Add photo}
Order Code: 1487545
Configuration: 1+1
Network: TT/TN-S
Features:
- Type 2 SPD with separate N-PE spark gap
- Designed for two-pole protection
- Compact and cost-effective
VAL-MS-EE-T2-1+1-320-2BE-FM
Order Code: 1487544
Configuration: 1+1
Network: TT/TN-S
Additional Feature:
- FM = Remote signalling contactfor SCADA/BMS monitoring
- Gives real-time protection status
VAL-MS-EE-T2-3+1-320-FM
Order Code: 2910574
Configuration: 3+1
Network: TN-S / TT
Features:
- Three MOV-based L-N modules + one spark gap for N-PE
- Suitable for three-phase systems
- FM signalling for remote monitoring
- Higher protection capability for industrial loads

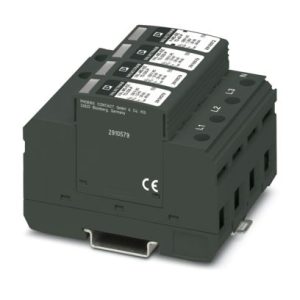

VAL-MS-EE-T2-3+1-320
Order Code: 2910575
Configuration: 3+1
Network: TN-S / TT
Features:
- Same protection design as FM model
- No remote signalling output
- Suitable for cost-optimized installations
Difference between All Types (Simple Comparison)
Model | Phases | Remote Signalling | Network Type | Ideal For |
1+1-320-2BE | Single-phase | No | TT/TN-S | Small loads, residential, retail |
1+1-320-2BE-FM | Single-phase | Yes | TT/TN-S | Automation panels, monitored systems |
3+1-320 | Three-phase | No | TT/TN-S | Commercial & industrial systems |
3+1-320-FM | Three-phase | Yes | TT/TN-S | Smart buildings, SCADA-integrated plants |
Top Reasons to Buy ESSENTIAL SPD from United Machinery
- Trusted Multi-State & International Supplier: Serving India’s major industrial hubs and expanding into Saudi Arabia & UAE.
- 100% Genuine Phoenix Contact Products: Guaranteed authorised sourcing with complete traceability.
- Competitive Pricing & Bulk Order Support: Ideal for distributors, panel builders, EPC contractors, and OEMs.
- Technical Expertise & Guidance: Helping clients select the right SPD for power networks and applications.
- Ready Stock & Fast Delivery: Ensures uninterrupted project deployments.
- Post-Sales Assistance & Warranty Support: End-to-end reliability you can depend on.
Customer Success Stories with United Machinery
- Industrial Plant – Odisha
A major steel plant faced frequent controller failures due to surges. After installing the VAL-MS-EE-T2-3+1-320-FM, downtime reduced by 70%, saving significant maintenance costs.
- Commercial Building – Maharashtra
Replacement of outdated SPDs with 1+1-320-2BE improved elevator and HVAC stability, eliminating recurring service visits.
- Automation Panel Builder – Gujarat
Using FM-enabled SPDs helped integrate surge monitoring with BMS, enhancing safety compliance and reducing inspection time.
