ABB High Speed Tripping Relay Supplier
About the product
United Machinery is a trusted supplier of ABB High Speed Tripping Relays, delivering reliable solutions across West Bengal, Bihar, Odisha, Chhattisgarh, Jharkhand, Maharashtra, Rajasthan, Haryana, Madhya Pradesh, Gujarat, Assam, Tripura, Andhra Pradesh, Meghalaya, Karnataka, Manipur, Tamil Nadu, Hyderabad, and internationally in Saudi Arabia & the UAE.
Product Information
ABB High Speed Tripping Relays are specially engineered for instant fault detection and rapid circuit tripping in power systems. These relays play a critical role in protecting electrical equipment by isolating faulty sections within milliseconds. They are widely used in substations, power plants, industrial control panels, and critical power distribution systems.
Available Models are:

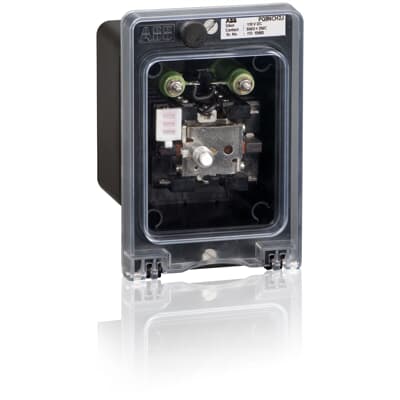

PQ5nCH2J – DC (4 Contacts)
Description: High speed tripping relay designed for fast fault isolation in DC control circuits. Comes with hand reset contacts and a built-in operation indicator for easy status checking.
Size: Approx. 110 × 75 × 65 mm (Compact housing)
Colour: Light grey body with transparent indicator window
PQ5nCH2J – AC (4 Contacts)
Description: Suitable for AC control systems, this relay provides quick tripping response with manual reset and a clear operation indicator. Designed for reliable performance in switchgear panels.
Size: Approx. 110 × 75 × 65 mm
Colour: Light grey housing with clear indicator lens
PQ8nCH2J – DC (7 Contacts)
Description: High speed tripping relay with 7 contact points for advanced control and protection circuits. Features hand reset and visual operation indicator for fault monitoring in DC systems.
Size: Approx. 140 × 90 × 70 mm (Heavy-duty design)
Colour: Industrial grey body with transparent flag indicator
PQ8nCH2J – AC (7 Contacts)
Description: AC version of the high contact relay designed for complex protection systems. Offers fast tripping action, manual reset, and easy fault visibility through the indicator.
Size: Approx. 140 × 90 × 70 mm
Colour: Light grey with clear viewing window
PQ8nC2JW – High Burden Type
Description: Special high-burden tripping relay built for heavy-duty tripping circuits. Equipped with hand reset and clear operation indicator to ensure reliable fault signalling in high-load applications.
Size: Approx. 150 × 95 × 75 mm
Colour: Grey housing with red operation indicator
RXPQ8n
Description: Compact high speed tripping relay with hand reset and operation indicator. Suitable for standard protection circuits requiring fast and dependable tripping.
Size: Approx. 110 × 70 × 60 mm
Colour: Light grey housing with clear status window
PSU14n-2X
Description: Electrically reset high speed tripping relay with built-in operation indicator. Ideal for automated systems where remote reset functionality is required.
Size: Approx. 120 × 80 × 65 mm
Colour: Grey body with green/red operation window
RXPSU14n
Description: Advanced electrically reset tripping relay with operation indicator, designed for modern protection panels and critical power applications.
Size: Approx. 120 × 80 × 65 mm
Colour: Light grey housing with transparent indicator section
PSU6n-X
Description: High speed trip relay designed without an operation indicator, suitable for compact panels where visual indication is not required.
Size: Approx. 100 × 65 × 55 mm
Colour: Plain light grey housing
RXPSU6n
Description: Compact version of high speed trip relay without an operation indicator, used in basic trip circuit applications with reliable fast switching performance.
Size: Approx. 100 × 65 × 55 mm
Colour: Grey industrial finish
Outstanding Features
- Ultra-fast response time for fault tripping
- High sensitivity and accuracy
- Suitable for AC and DC trip circuits
- Robust and durable industrial construction
- Compact design for easy panel installation
- Low power consumption
- Long mechanical and electrical life
Benefits of Using This Product
- Prevents severe equipment damage during electrical faults
- Improves operational safety of power systems
- Minimizes downtime and maintenance costs
- Enhances system stability and reliability
- Provides consistent and dependable tripping performance
Performance Data
Parameter | Specification |
Relay Type | High Speed Tripping Relay |
Operating Time | ≤ 10 ms (typical) |
Control Voltage | AC / DC variants available |
Contact Type | High-speed NO/NC contacts |
Output Capacity | High breaking capacity |
Mounting Type | Panel / DIN Rail |
Operating Temperature | -25°C to +55°C |
Mechanical Life | Up to 10 million operations |
Affordable ABB High Speed Tripping Relay Solutions in All Regions
United Machinery offers Affordable ABB High Speed Tripping Relay solutions across West Bengal, Bihar, Odisha, Chhattisgarh, Jharkhand, Maharashtra, Rajasthan, Haryana, Madhya Pradesh, Gujarat, Assam, Tripura, Andhra Pradesh, Meghalaya, Karnataka, Manipur, Tamil Nadu, Hyderabad, and also supplies internationally to Saudi Arabia & the UAE, ensuring the best quality at competitive prices.
We Supply Across India and International
We supply ABB High Speed Tripping Relay to:
- West Bengal
- Bihar
- Odisha
- Chhattisgarh
- Jharkhand:Ranchi
- Maharashtra:Mumbai, Pune, Nagpur, Aurangabad
- Rajasthan:Jaipur
- Haryana:Faridabad
- Madhya Pradesh:Bhopal, Indore
- Gujarat:Ahmedabad, Surat, Vadodara
- Assam
- Tripura:Agartala
- Andhra Pradesh:Visakhapatnam
- Meghalaya
- Karnataka:Bengaluru
- Manipur:Imphal
- Tamil Nadu:Chennai, Coimbatore
- Hyderabad
- International Supply:
- Saudi Arabia:Al Jubail, Jeddah, Riyadh, Al Khobar
- UAE:Abu Dhabi, Dubai, Ruwais, Umm Al Quwain
Why Customers Prefer United Machinery for ABB High Speed Tripping Relays
- Trusted supplier of genuine ABB products
- Wide service and supply network across India and overseas
- Competitive pricing for bulk and project requirements
- Fast delivery and reliable logistics support
- Expert technical assistance and after-sales service
How ABB High Speed Tripping Relays Can Solve Your Needs
ABB High Speed Tripping Relays help protect your electrical systems by instantly isolating faults, preventing cascading failures, and reducing the risk of fire or equipment damage. They are ideal for industries where speed, safety, and system reliability are critical, helping you maintain uninterrupted and efficient operations.
Contact Us
ABB High Speed Tripping Relay Supplier – United Machinery Corporation
Looking for a reliable ABB High Speed Tripping Relay Supplier? Get in touch with United Machinery Corporation for genuine ABB products, competitive pricing, and prompt technical support. We cater to industrial, utility, EPC, and maintenance requirements across India, Saudi Arabia, and UAE.
Phone Number – +91 90732 37992
Email Id – onlineumc9@gmail.com
